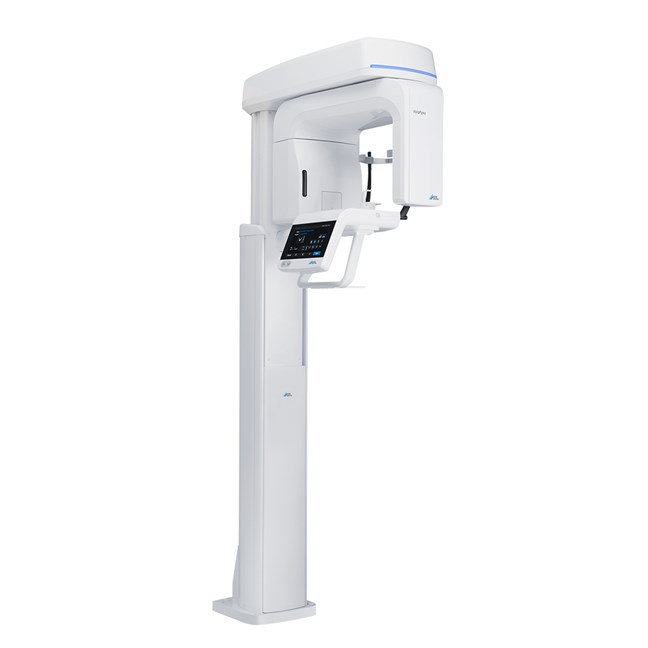

VistaPano S 2.0

2D X-ray system – truly perfect imaging

Digital panoramic X-ray unit with S-Pan technology.

Key facts:

• S-Pan-technology for easier diagnostics
• Outstanding image quality thanks to the latest generation of high-resolution CsI sensors
• Slim design, small footprint
• Very fast: panoramic images within 7 seconds
• 8” glass touch display for intuitive operation
• Comprehensive package of intelligent automation functions with VistaSoft AI

Technical Data:

• Image detector type: CsI:TI Sensor
• Pixel size (µm): 100
• Scan times (s): 2,4 - 13,5
• Active sensor surface area (mm): 6 x 151,2 mm
• Voltage (kV): 60 - 99
• Focal spot (mm): 0,5 mm (IEC60336)
• Min. total filtration (mm): 2,5
• Frame rate (fps): 287
• Magnification factor: 1,3
• Maximum height (mm): 2287
• Weight (without/with foot, kg): 112,5/158
• Height adjustment range (mm): 700
• Dimensions (W x D x H mm): 990 x 1160 x 2287
• Mains voltage (V AC): 200 - 240
• Frequency (Hz): 50/60
• Rated power (kVA): 2,2
• Installation (wall-mounted or foot): Yes
