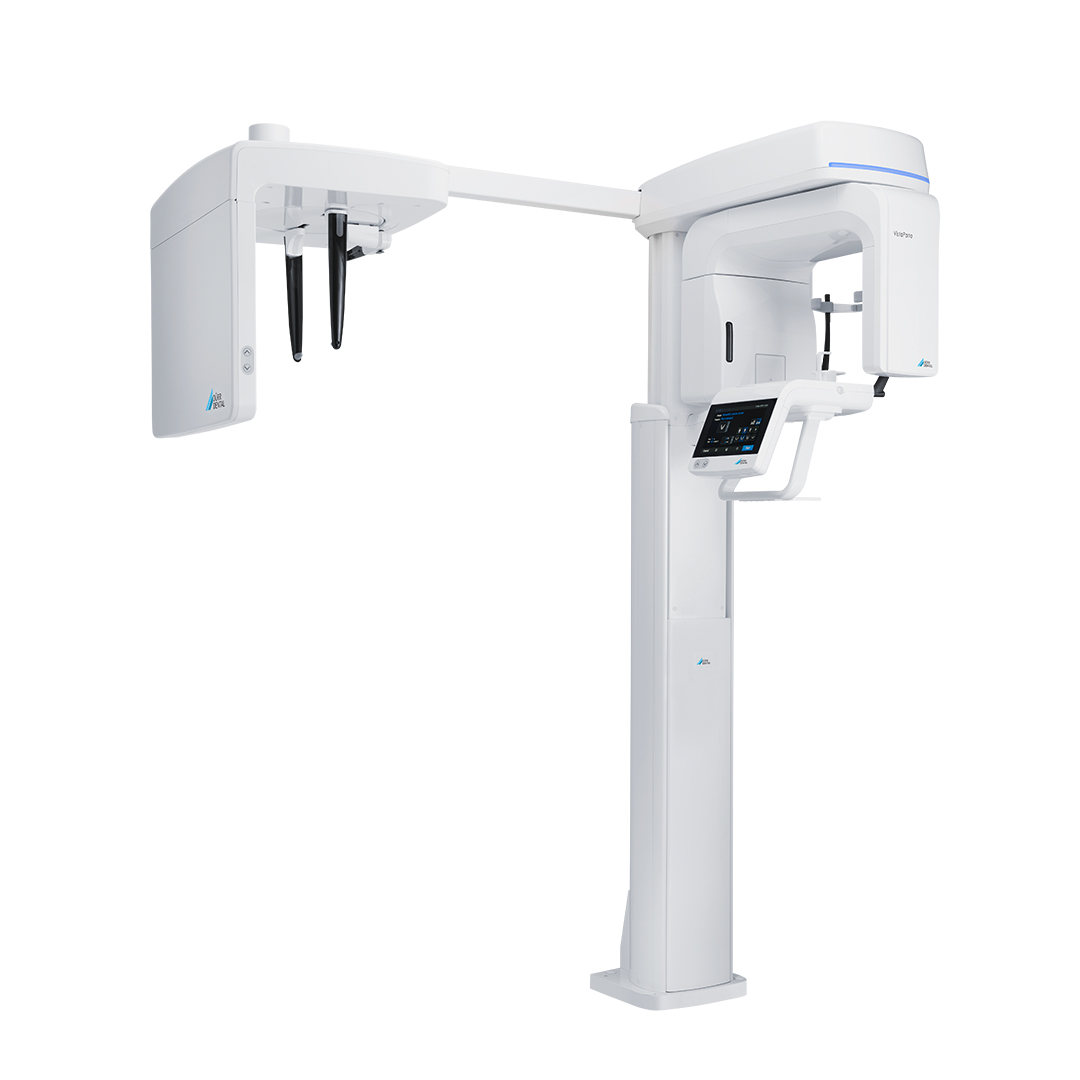

VistaPano S Ceph 2.0 X-ray system with low radiation exposure and high efficiency

Quick Cephalometric exposure with a low X-ray dose and exceptional image quality.

Key facts:

• Ceph recordings within 2 seconds
• Excellent image quality
• Low dose exposure
• No sensor change, as two modern high-end CsI sensors are integrated
• Height-adjustable also on the Ceph side

Technical Data:

• Image detector type: CsI:TI Sensor
• Pixel size (µm): 100
• Scan times (s): 2,4 - 13,5 (lat.head in fast scan mode: 1,9)
• Active sensor surface area (mm): 6 x 151,2 mm / Ceph: 15,6 x 259,2 mm
• Voltage (kV): 60 - 99
• Focal spot (mm): 0,5 mm (IEC60336)
• Min. total filtration (mm): 2,5
• Frame rate (fps): 287 / Ceph: 109
• Magnification factor: 1,3 / Ceph: 1,14
• Maximum height (mm): 2287
• Weight (without/with foot, kg): 34,8/180,3
• Height adjustment range (mm): 700
• Dimensions (W x D x H mm): 1900 x 1160 x 2287
• Mains voltage (V AC): 200 - 240
• Frequency (Hz): 50/60
• Rated power (kVA): 2,2
• Installation (wall-mounted or foot): Yes
