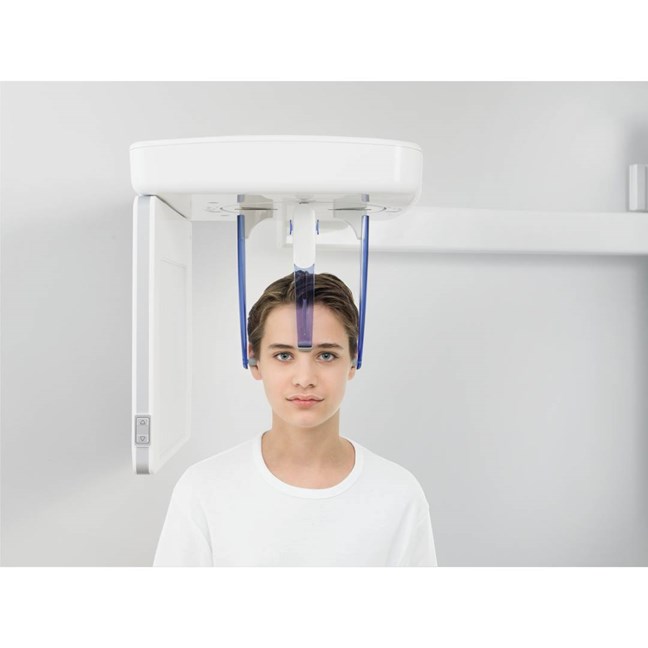

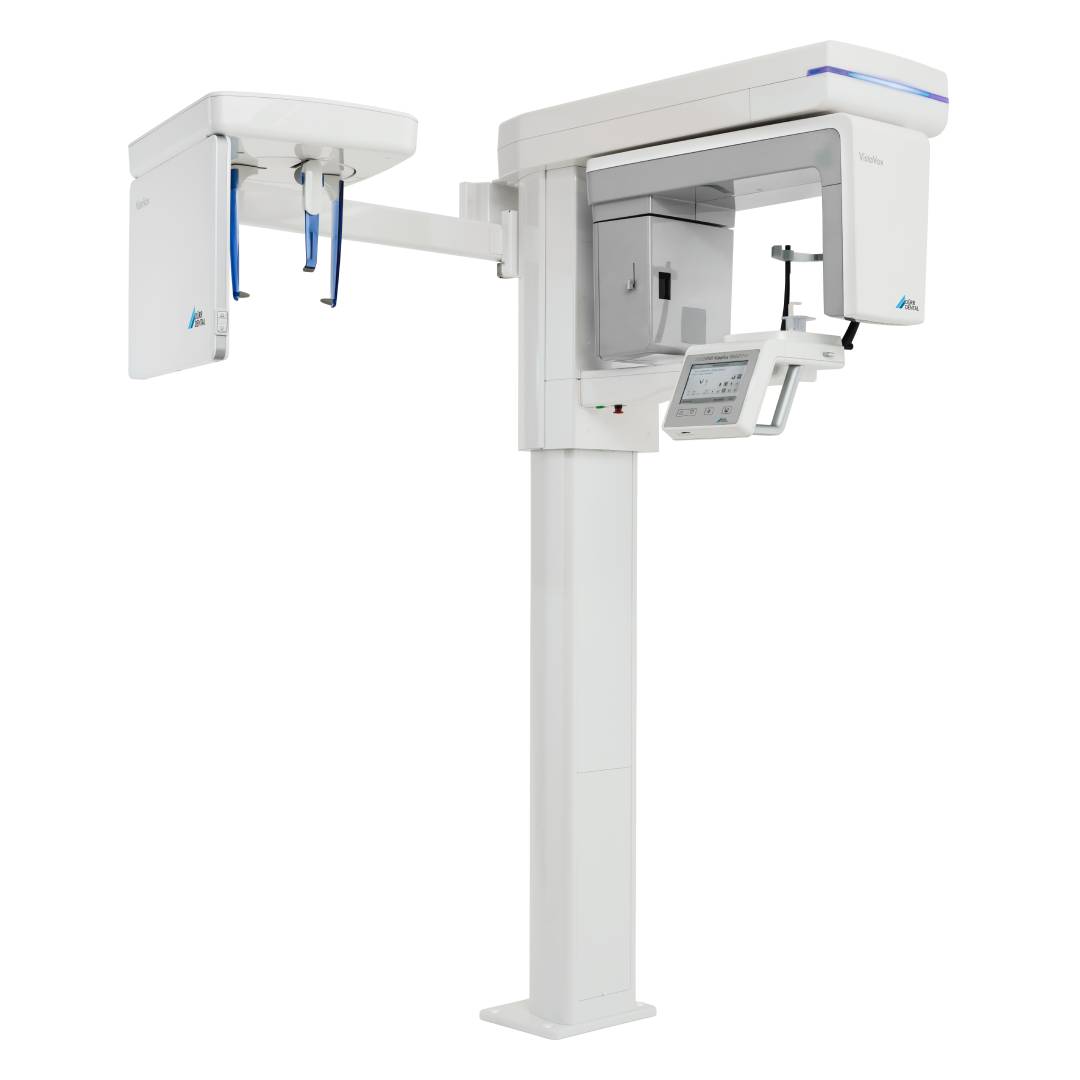

VistaVox S combines diagnostic reliability with efficiency and lower radiation exposure

Ideal imaging volume, easy positioning, high image quality: VistaVox S represents a milestone in the development of 2D and 3D X-ray imaging. Thanks to its unique technology, the images generated with this system cover everything you need for reliable diagnoses, well-founded treatment decisions and convincing patient communication. The S-Pan technology of the VistaVox S generates pinpoint accurate OPG images in best DÜRR DENTAL quality.

VistaVox S offers an ideal 3D volume that is adapted to the jaw arch: The special feature of VistaVox S is that its imaging volume is based on the human anatomy, representing precisely the area you need for diagnostics in the dental region.

VistaSoft 3D: VistaSoft 3D offers different views for your diagnosis of CBCT images: pano views, transversal layer images (TSA) and multiplanar reconstruction (MPR). Naturally, the VistaVox system includes VistaSoft as an unlimited network licence and a floating licence for three 3D workstations.

Ideal FoV

• Ideal 3D imaging volume matched to the jaw arch (Ø 130 x 85 mm)

Ergonomic and intuitive

• Modern, ergonomic VistaSoftimage processing software

Exceptional image quality

• In 2D and 3D thanks to the high-resolution CsI sensor with a pixel size of 49.5 μm

Fast

• Time-saving cephalometric projections from 1.9 seconds at a low dose

Technical Data:-

• Image detector type: CsI CMOS Photodiode array
• Pixel size (µm): 49,5
• Scan times (s): 2 - 18
• Active sensor surface area (mm): 135,8 x 36,4
• Voltage (kV): 60 - 99
• Tube current (mA): 4 - 16
• Focal spot (mm): 0,5
• Min. total filtration (mm): 2,8
• 3D volume, child, diagnostic (mm): Ø 130 x 70
• 3D volume, adult, diagnostic (mm): Ø 130 x 85
• 3D volume, jaw region (mm): Ø 50 x 50
• Height (mm): 1.406 - 2.250
• Weight (kg): 180
• Height adjustment range (mm): 844
• Width x depth (mm): 990 x 1.130
• Installation: Wall Mounted
• Frequency (Hz): 50/60
• Rated power (VA): 2.200
• Mains voltage (V AC): 200 - 240
