Please contact us directly to receive a customised quote based on your specific needs.

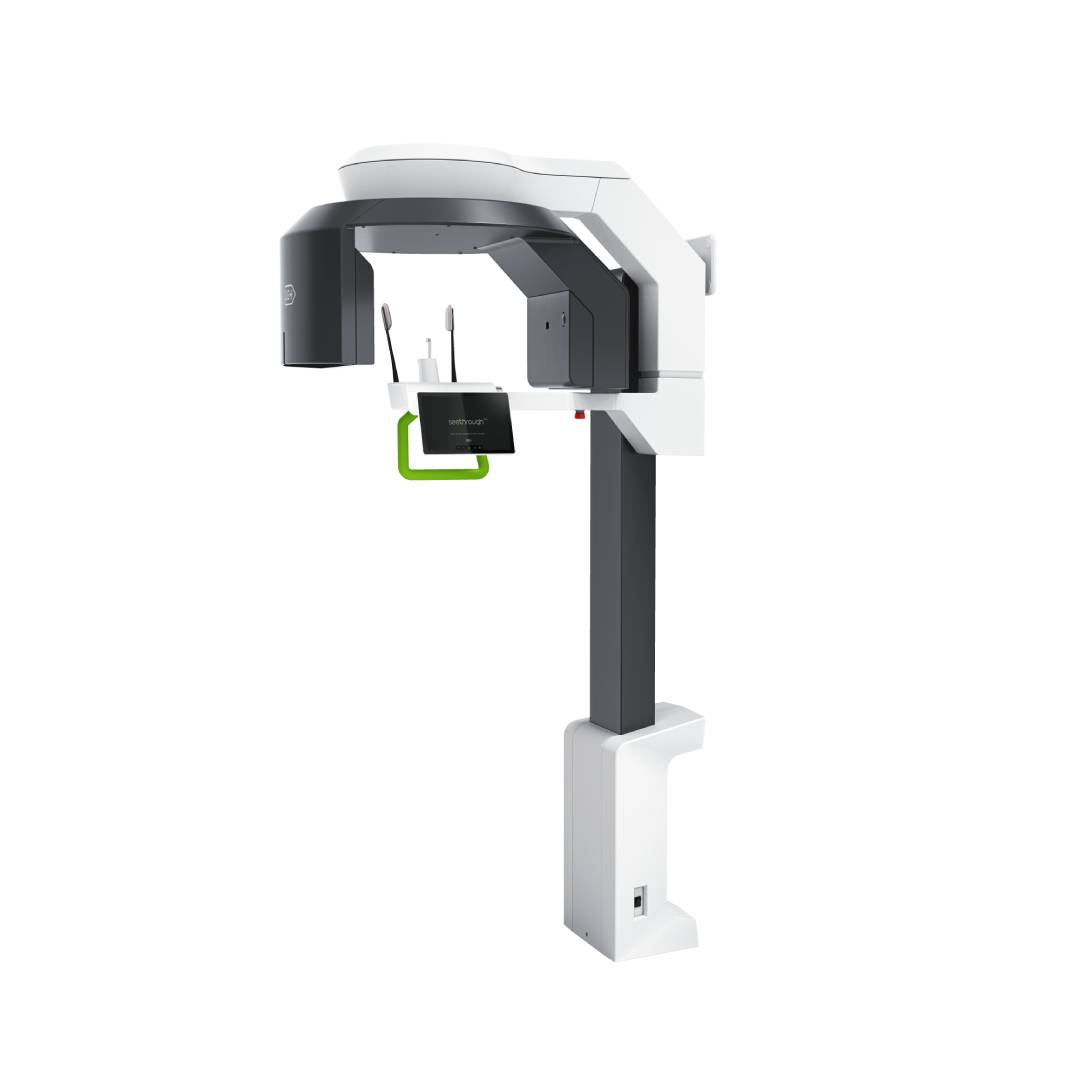

Seethrough MAX offers uncompromising power and quality with an exceptional coverage of field of view, ranging from the smallest volume at 3 x 4 cm, ideal for endodontic, to nearly the full skull at 17 x 17 cm which is used for extensive maxillofacial surgeries. The Seethrough MAX ensures patient comfort as its generous dimensions accommodate all patients. Ease of patient accessibility also minimizes errors and repositioning ensuring high quality images every time.
These features enable a full 360° degree rotation and a powerful tube voltage of 105 kV, resulting in superior image quality.
The face-to-face positioning of patients optimizes clinical experience whilst making sure that good patient communication is maintained and allows for laser checks with full visibility of the patient.
The 10" touchscreen simplifies the use of the device itself, displays the exposure parameters selected and allows doctors to optimize use of time.
Main Features:-
X-ray tube head tension:105 kV for maximizing the picture quality, contrast, and artifact reduction. Higher tube head voltage penetrates dense structures more effectively, reducing noise and improving image clarity for more detailed assessments.
Focal spot: 0.5mm
Metal Artifact Removal: The Metal Artifact Removal (MAR) reduces distortions caused by metals ensuring better clarity and accuracy and better visibility of anatomical structures. This allows for more precise treatment planning, even in patients with implants or restorations. This option can be retrofitted if required.
Denoise: Algorithm for reducing noise while preserving fine details and improving clarity for accurate analysis of bone and soft tissue. This adjustable feature minimizes retakes and supports lower radiation doses.
Patient Motion Correction (2D and 3D):Patient movement during scanning is compensated for and motion and blurring are reduced. Patient Motion Correction ensures clearer images in both 2D and 3D without the need for scans.
Patient Position Correction (2D): This feature automatically detects and corrects patient misalignment to ensure optimal image quality, reducing distortion and errors.
Normal mode: This feature automatically detects and corrects patient misalignment to ensure optimal image quality, reducing distortion and errors.
High quality: Dedicated to the smaller details with a voxel size of 120 μm
Endo mode: Optimized voxel size (up to 80 μm)
Low dose mode: Designed to minimize patient dose by reducing mA while maintaining high resolution using voxel size customization from 160-320 μm. This allows the reduction of radiation dose while still maintaining image quality.
Balanced/orthogonal trajectory: Providing the option of adjustable trajectory. Balanced: for detecting the real anatomy of the patient.
Orthogonal: to better distinguish adjacent teeth and visualization of the alveolar crest.
Ideal for periodontal imaging and implant planning.
Contains Full Seethrough Max installation kit, consisting of 2 boxes (2 pallets), on board control panel and all documentation plus workstation including graphic card and Windows 11 IoT operating system
Requires 2 people to transport and fit
Warranty: 2 Years
