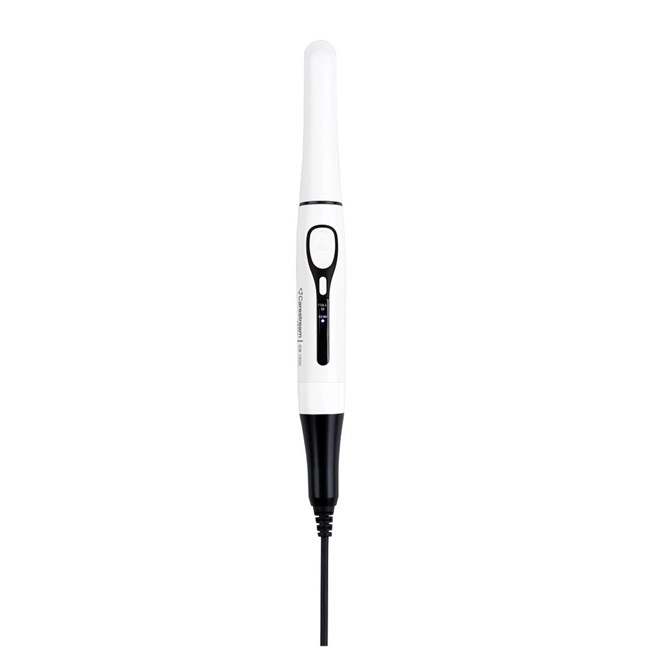

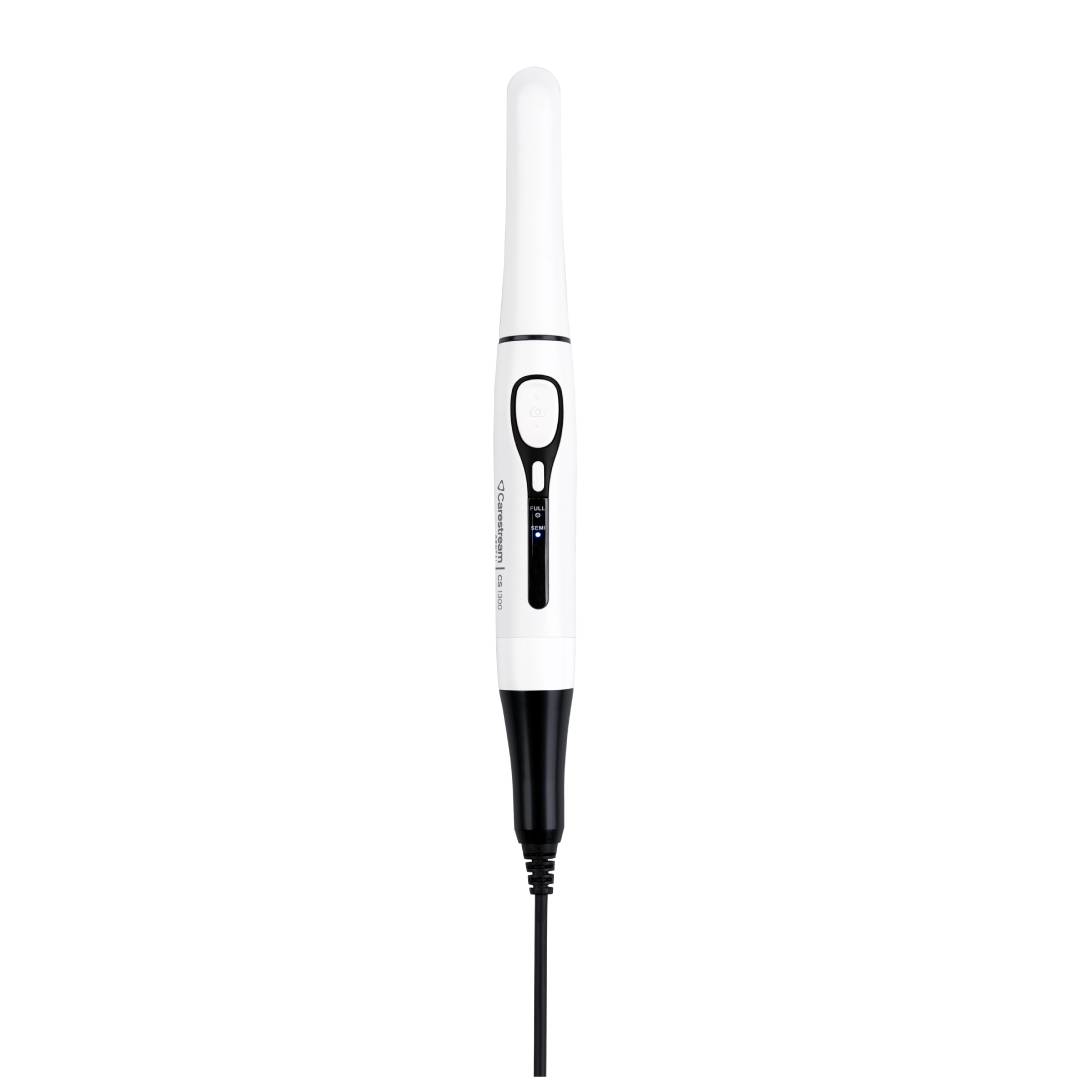

Carestream CS 1300 Intraoral USB Camera

Clarity at every angle. Simply integrated

Clear images that support your workflow

The CS 1300 intraoral camera is designed to deliver high‑quality images that help support patient communication and day‑to‑day clinical documentation. Its intuitive handling, rotating head and lighting features help make image capture efficient—while its integration with CS Imaging version 8 and third‑party software simplifies your workflow.

• HD clarity for confident patient conversations

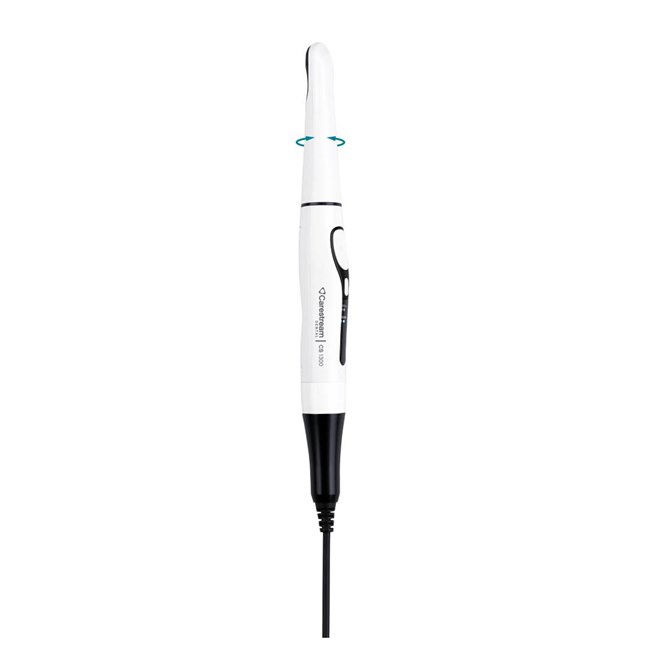

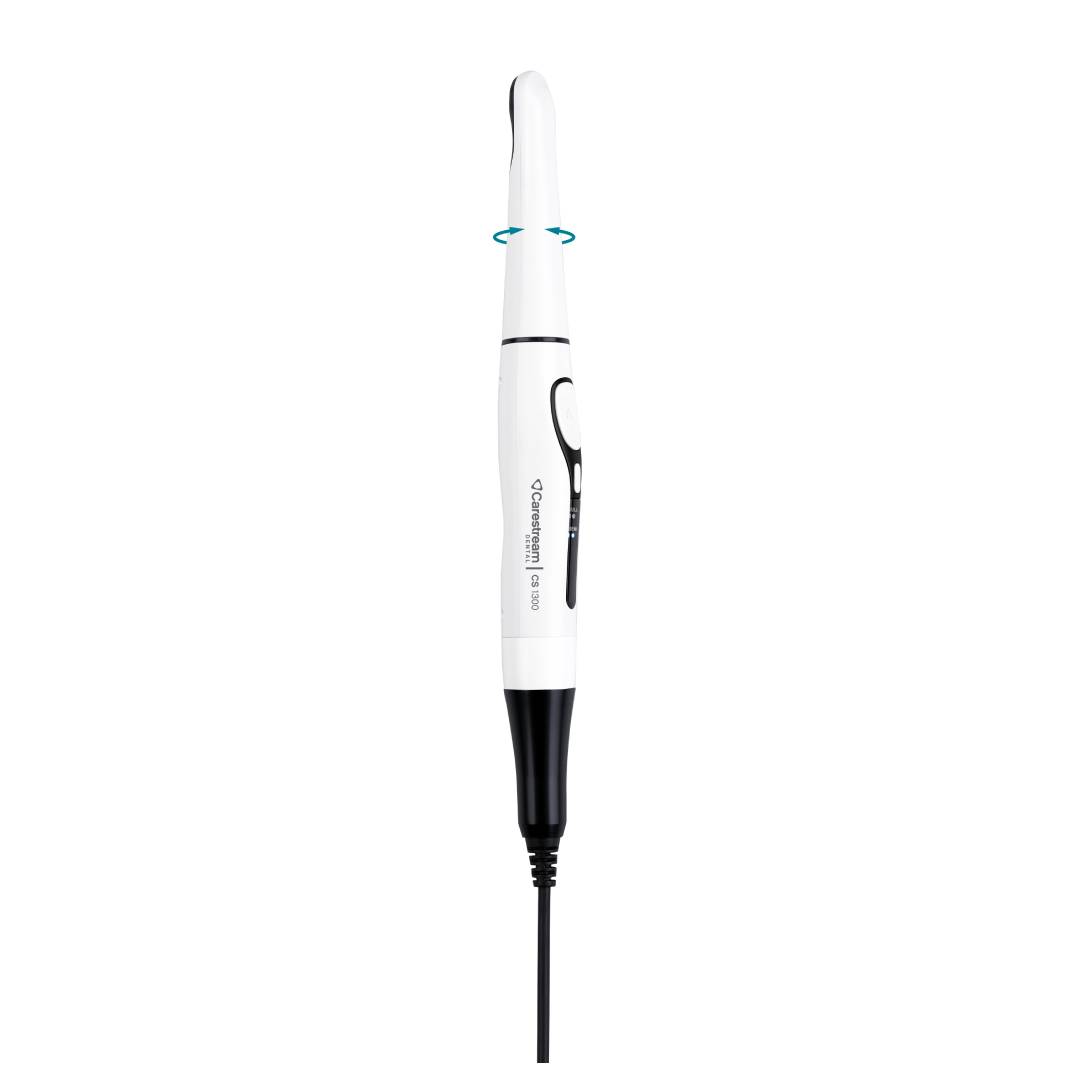

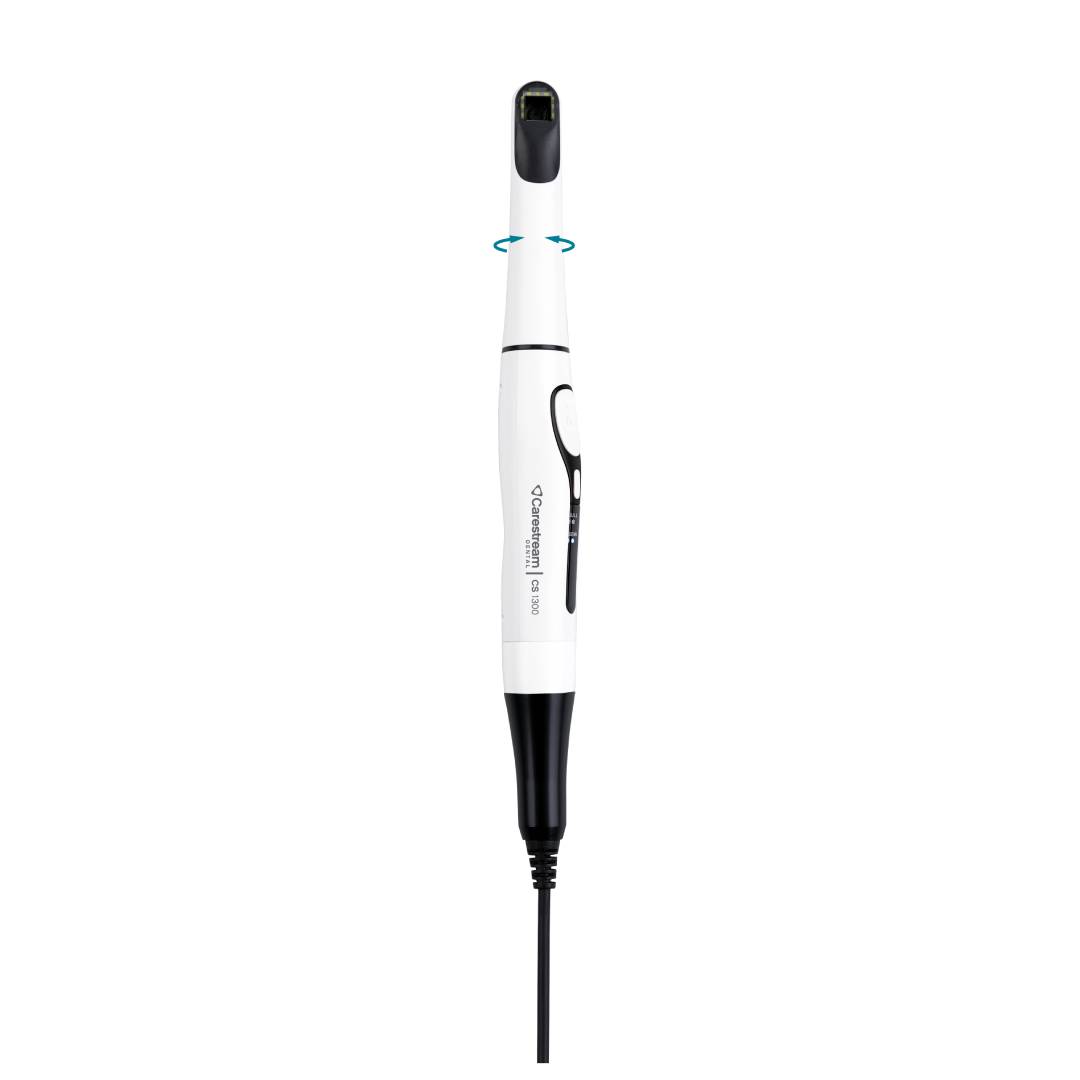

• 280° rotating head designed for easy image capture -
• One-click image capture
• Wide focus range for macro details and broader views
• Smooth integration with Carestream Dental software
• Plug‑and‑play setup for straightforward installation and sharing

Technical Specifications:-

• Sensor 5M Pixel CMOS
• Lens type Liquid
• Focus Auto and Semi Focus
• Focus Range Macro to full arch (10mm to 100mm)
• FOV 84°
• View angle 90°
• Max Definition HD (1280x720)
• Light Source 9 LEDs with adjustable brightness and color temperature
• Handpiece weight Approx. 56g
• Dimensions Approx. L202 x W30 x H28 mm
• Connection USB – Detachable cable
