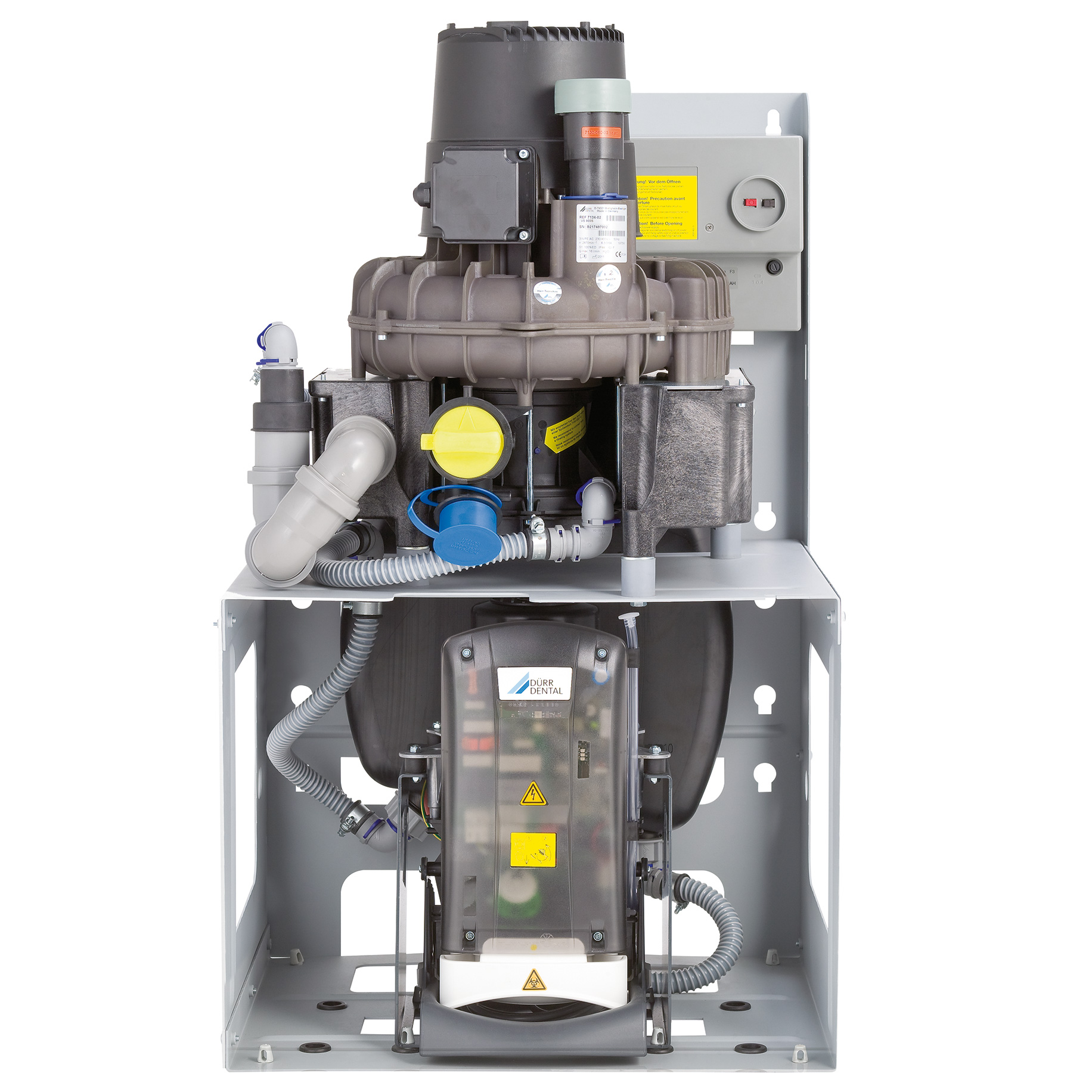

VSA 900S 3-4 Surgery Suction System

Comprising: VS900S Suction Motor, CA4 amalgam separator floor stand & expansion tank.

The VSA systems combine vacuum generation and separation in a single compact unit. Completely configured with hose lines, connections and a control unit, the VSA 1200 and VSA 900 systems, for example, simplify integration in every surgery, and it does not matter whether they are for new facilities or a modernisation measure. Moreover, central suction and separation improve efficiency compared to systems in the treatment units, as they minimise or even eliminate costs for additional automatic separators, for example.

VSA systems

• Maximum suction force without delay
• Variable, space-saving installation
• The two-stage separation brings high foam tolerance
• Suitable for up to 6 treatment units

CA4 Amalgam Separator

• Centrifugal separator with hydrodynamic self-cleaning function
• Reliable, automatic filling level check
• High flow rate of up to 16 l/min
• Separation rate of 98.9%

Technical Data:-

• 230 Voltage
• Frequency 50 Hz
• Max electrical output 1.89 kW
• Current consumption 7.4 A
• Dimensions without housing (H x W x D cm): 97 x 58 x 55
• Weight without housing: 65 kg
• Noise level without housing: approx 65 dB(A)
