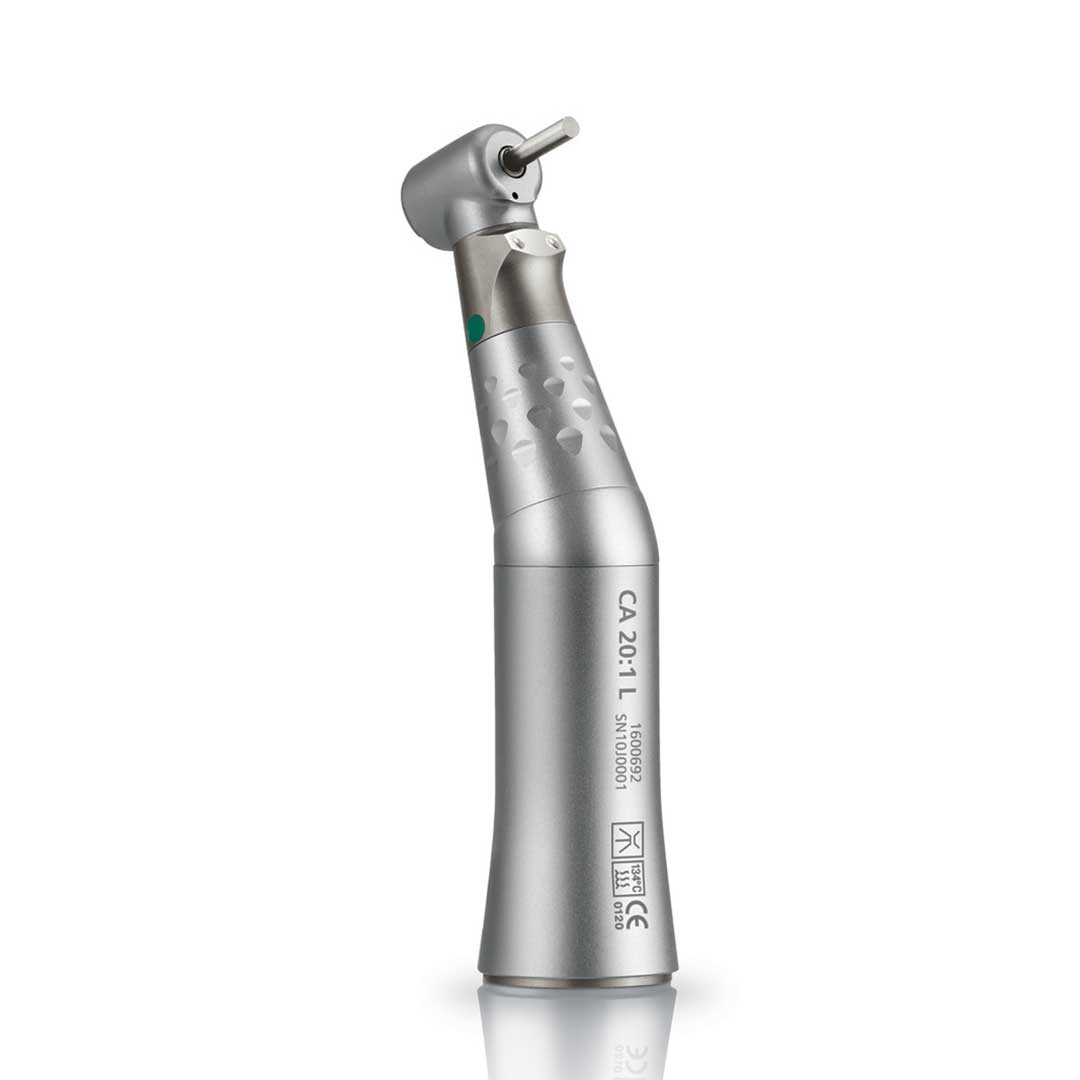

CA 20:1 L Optic Implant Contra-angle. Unique Irrigation line connection: Irrigation line connects to the back of the handpiece to keep the head clear for better vision in the mouth.

New in 2025: the CA 20:1 contra-angle now has a new tapered head shape!

This tapered head will significantly improve the visibility of the surgical site, ensuring enhanced ergonomics for the end user and a wider view angle!

This contra-angle has an irrigation system internal to the instrument, a world-first. So your grip is not impeded by the irrigation line. The jet of physiological liquid is projected onto the drill shaft itself, providing perfect cooling, mainly when using implant guides for insertions.

In addition, its shafts and gears are machined in stainless steel with high resistance to saline solutions.

Technical Data:-

• Transmission ratio: 20:1
• Maximum speed (rpm): 2,000
• Head diameter (mm): 9.8
• Head size (mm): 13.5mm
• Weight(g): 87g
• Noise level (dBa): 57
• Spray system: Internal irrigation and Kirschner Meyer
• Lighting system: Multi-strand optical glass technology
• Coupling system: ISO 3964 & Bien-Air Micro-Series
• Warranty: 2 Years
