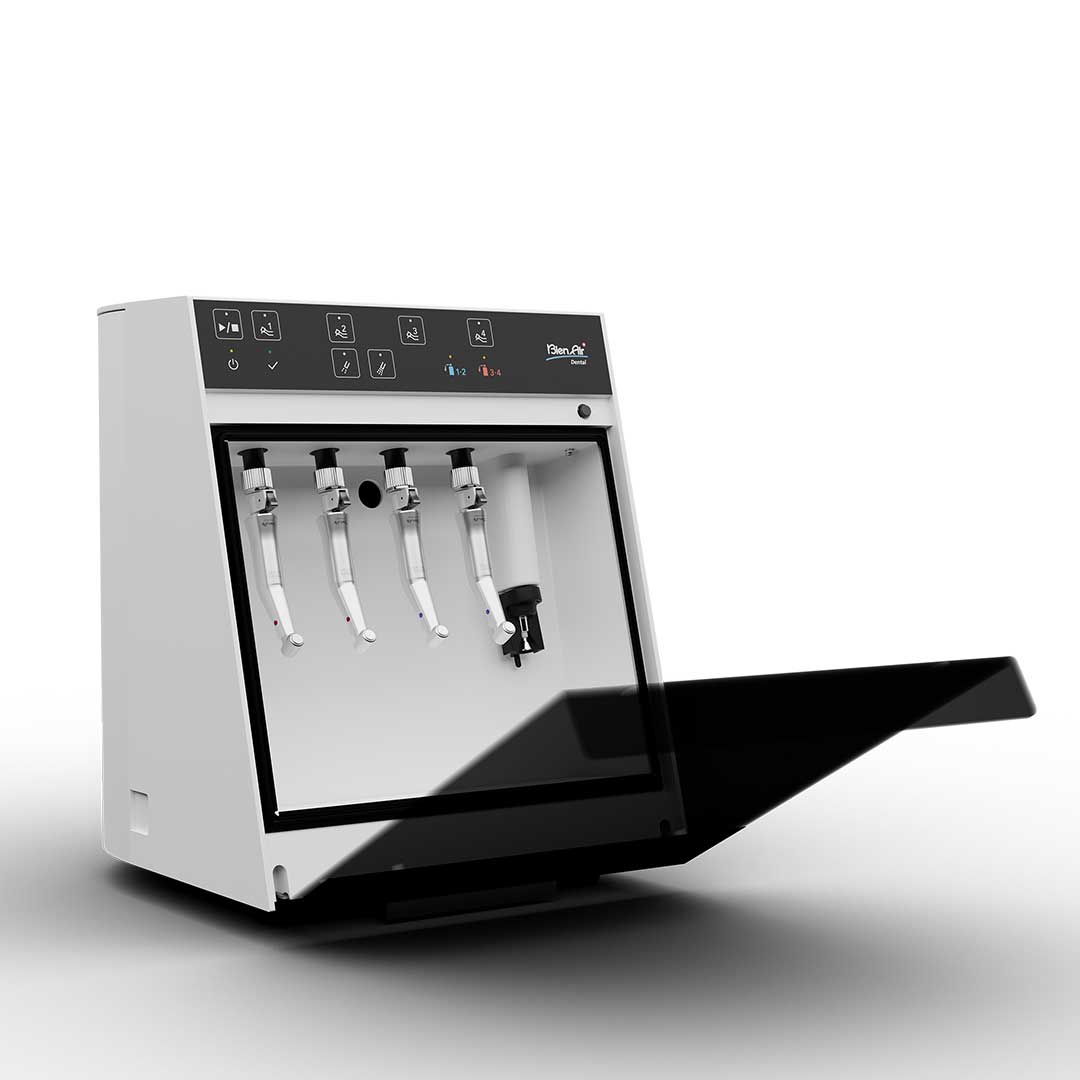

Lubricare 2 Maintenance Machine

Lubricare 2 automatically performs maintenance (cleaning and lubrication) of dental handpieces, which are essential for daily practice. Thanks to different preprogrammed operating modes suitable for each specific handpiece, Lubricare 2 can automatically perform maintenance of up to four handpieces in a short time.

The clean air-blow system ensures cleaning and lubrication of the inside of the handpiece thoroughly and allows constantly for repeatable high standards without intra-operator variability, which may occur during manual lubrication.

Thanks to different preprogrammed operating modes suitable for each specific handpiece, Lubricare 2 can automatically perform maintenance of up to four handpieces in a short time. It cleans a turbine in approximately 20 seconds and a contra-angle in 40 seconds.

When using Lubricare 2, oil consumption is reduced by 4 times compared to manual procedure, thus allowing for a faster maintenance with excellent cost savings.

By employing the dual solenoid valves system and a clean air dedicated conduit, the system can supply clean air without a mix of oil. During the water removal process before lubrication, the system removes the water in the head, which maximizes lubrication results and minimizes any idling period before use.

The control panel is flat for easy cleaning, and the front door can be removed for improved access. Lubricare 2 incorporates a built-in oil mist suction mechanism to prevent aerosol diffusion when in use

To achieve the best outcomes, Bien-Air highly recommends using Spraynet®, which is proven to

reduce 99,99% of the microbial load.

Lubricare 2 is compatible with handpieces and cleaning or lubrication products from other manufacturers. Additional couplings or spray holder may be needed.

Technical Data:-

• Cycle duration: 20 seconds turbine, 40 seconds contrangle
• Capacity: 4 ways (2 cleaning, 2 lubricating) and 1 chuck lane
• Rating: AC 100 V to 240 V, 50/60 Hz
• Power consumption: 10 VA to 25 VA
• Air flow rate: 60 NL/min to 100 NL/min (0.3 MPa to 0.5 MPa)
• Air pressure: 0.3 Mpa to 0.5 Mpa (recommended 0.4 Mpa)
• Weight: approx 8kg
• Outer dimensions: Width 300 mm x Depth 300 mm x Height 365 mm
• Warranty: 2 Years
