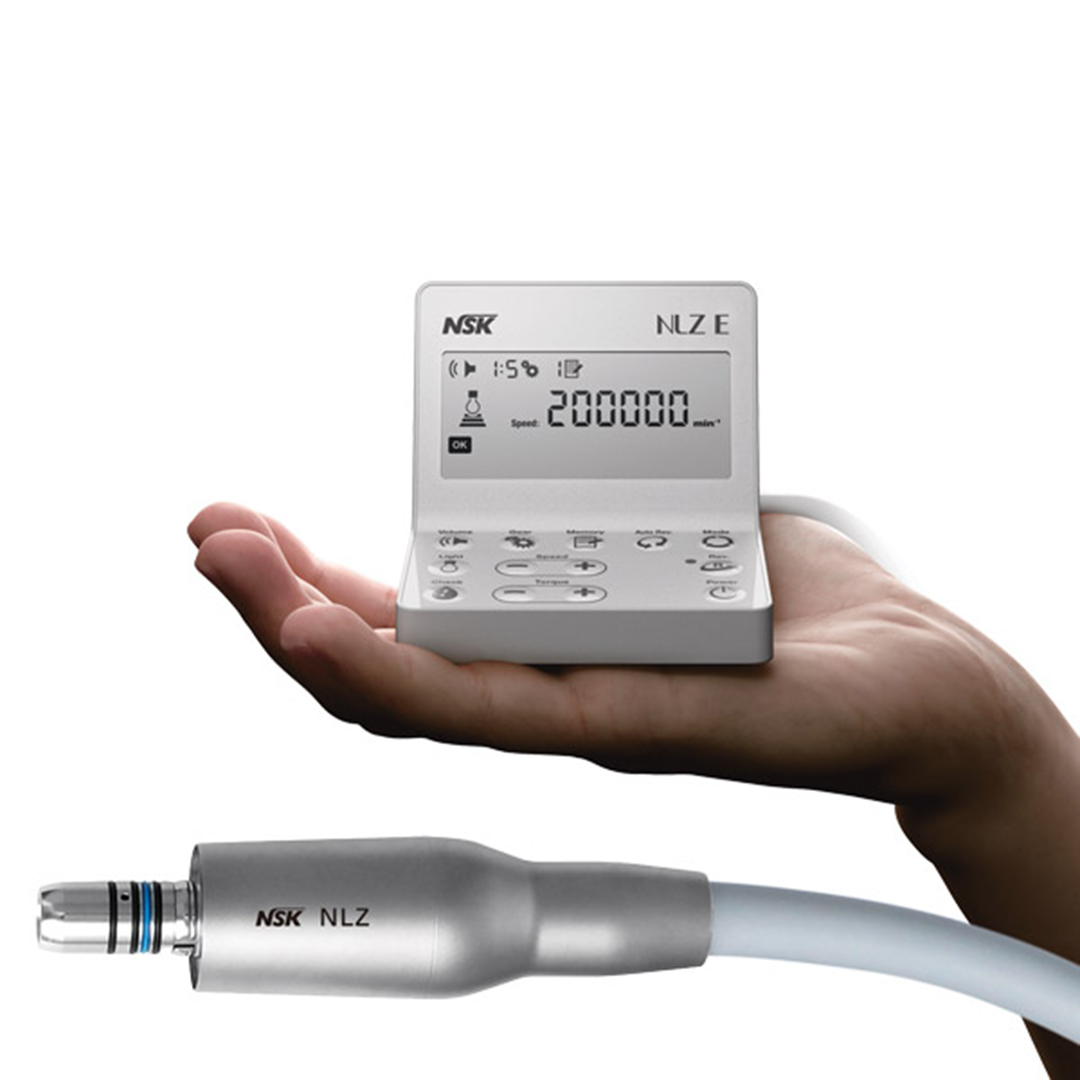

NLZ E Portable Micromotor

Portable Micromotor - Including reciprocating and rotary Endo features

NEW compact portable electric micromotor, for general and endodontic applications with contra-angles (ie speed increasing/red band, 1:1 direct drive/blue band or speed reducing/green band.

• Lighter motor with enhanced power/torque
• Ideal for general (restorative/prophy etc) and endo applications (rotary & reciprocating* modes)
• Enhanced patient safety function indicates when the handpiece needs repair to minimise it overheating
• Versatile installation options - portable or semi built-in

Specifications (Unit)

• Dimension Control Unit W76 × D87.1 × H63.4 mm
• Dimension Main Unit W146 × D75 × H48 mm
• Power Supply 230 V 50/60 Hz
• Programs General Application Mode / 6 programs Rotary Endo Mode / 6 programs

Specifications (Motor)

• Motor Type Brushless Micromotor
• Max Torque 4.2 Ncm
• Endodontics Torque 0.3 - 6.0 Ncm (Depending on gear ratio)
• Motor Speed 100 - 40,000 min-1
• Dimension Ø22 × H68.8 mm
• Weight 59 g (motor only)
• Light White LED

*The "Reciprocating Endo Mode" can be operated only with the NLZ Endo Contra Angle handpiece and WAVE ONE® file.

Contents: NLZ E U (Control Unit & Main Unit) NE180 (AC adaptor) NLZ (Motor) NLZ CD (Motor Cord) NLZ U BRACKET

The NLZ requires access to a plug socket, and the use of an existing Midwest hose from the cart to gain access to coolant water/air and the existing foot control.

24 Month Warranty
