Woodpecker

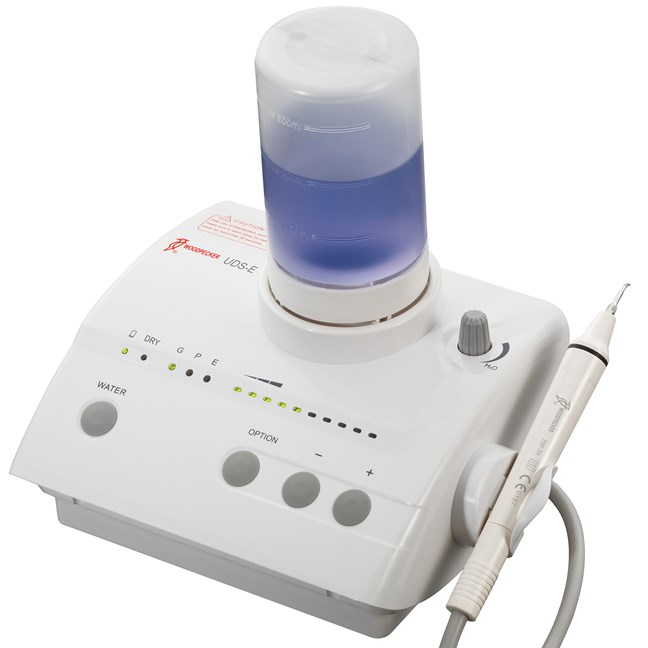

Woodpecker UDS-E Scaling Unit

QSE102 (Each) Woodpecker code: WOO/UDS-E/WATER

Retail Price £322.99

The UDS-E is a four-function (scaling, perio, endo and auto-water supply) ultrasonic piezo scaler with a detachable handpiece which is autoclavable to a maximum temperature of 135°C and a maximum pressure of 0.22MPa.

The unit features automatic frequency tracking which ensures that it is always operating on the most efficient frequency for optimum performance. It also features a built in 350ml capacity water container, however there is also an adaptor for an external water source and a spare bottle.

Features:-

Complete with 7 tips, torque wrench, tip holder and spare bottle
Auto-water supply function
Clinical fluids, such as hydrogen peroxide, chlorhexidine and sodium hypochlorite, etc., can be used perfectly under the mode of auto-water supply system so that the performance of perio and endo is improved dramatically
PC controlled for easy operation and more efficient scaling
Automatic frequency testing
EMS compatible handpiece
Scaling Frequency: Average 28000 - 29000Hz
Perio Frequency: Average 28000 - 29000Hz
Endo Frequency: Average 27000Hz

Specification:-

Main Unit Input: 30 V DC 13A
Output Power: 3W~20W
Frequency: 28kHz ± 3kHz
Water Container Capacity: 350ml
Dimensions: W234mm x D193mm x H109mm
Weight: 1.35Kg

UDS-E have a one year warranty.

Tubing requires regular cleaning.
