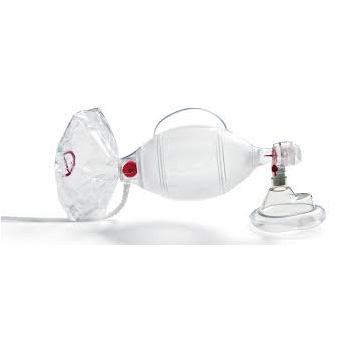

Ambu SPUR II – Adult Bag Valve Mask with pressure limiting valve, patient valve, O2 bag reservoir and disposable face mask size 5 with expiry date.
Ambu SPUR II provides users with exceptional tactile and visual feedback during resuscitation. The bag is highly responsive, with minimal mechanical resistance. Furthermore the characteristic design provides optimum stroke volume with perfect recoil.
Ambu SPUR II is MR conditional and can be used in the MRI environment according to the following conditions:
- Static magnetic field of 3-Tesla or less
- Spatial gradient magnetic field of 720-Gauss/cm or less
Ambu SPUR II is not intended to be in direct contact with a patient undergoing an MRI procedure.
Key Benefits:-
- Single-shutter valve system for reliable functionality
- Integrated handle for user comfort and uniform compression
- Thin-walled compression bag allows for lung compliance and “feel”
- SafeGrip™ surface for secure handling in stressful environments
- M-Port allows sidestream measuring of etCO2 or quick medication delivery without disconnecting the Ambu SPUR II from the ET tube
- Easy attachment of manometer and PEEP valve
- MR Conditional
Specifications:-
- Stroke volume: one hand 600 ml/ two hands 1000 ml
- Resuscitator volume: 1475 ml
- Dimensions (length x diameter): 295 x 127 mm
- Weight incl. reservoir O2 tube/mask: 314 g
- Pressure-limiting valve: 4.0 kPa (40 cm H2O)
- Dead space: <6 ml
- Inspiratory resist¬ance without O2: Max. 0.50 kPa (5.0 cm H2O) at 50 l/min
- Expiratory resistance: Max. 0.27 kPa (2.7 cm H2O) at 50 l/min
- Bag reservoir volume: 2600 ml
- Patient connector: Outside: 22 mm male (ANSI/ISO)
- Patient connector: Inside: 15 mm female (ANSI/ISO)
- Expiratory connector (for PEEP valve attachment): 30 mm male (ISO)
- Forward and backward leak: Not measurable
- M-Port: Standard Luer LS 6
- Recommended operating temperature: -18° C to +50° C
