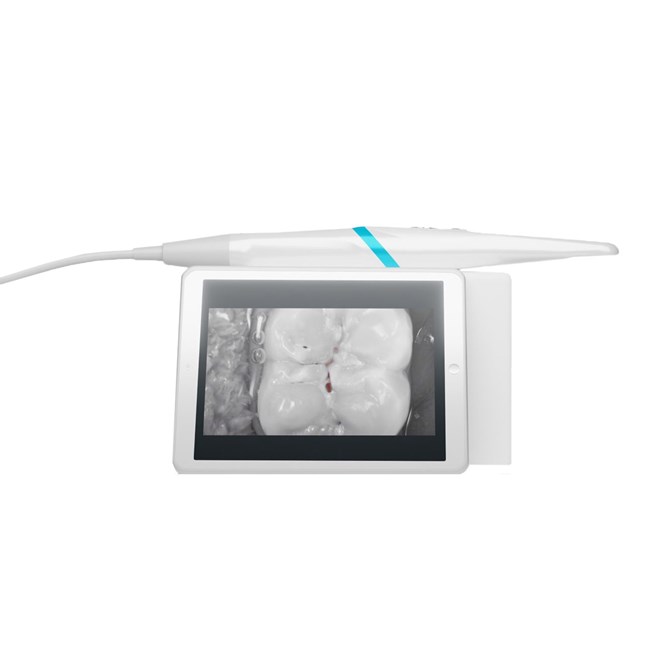

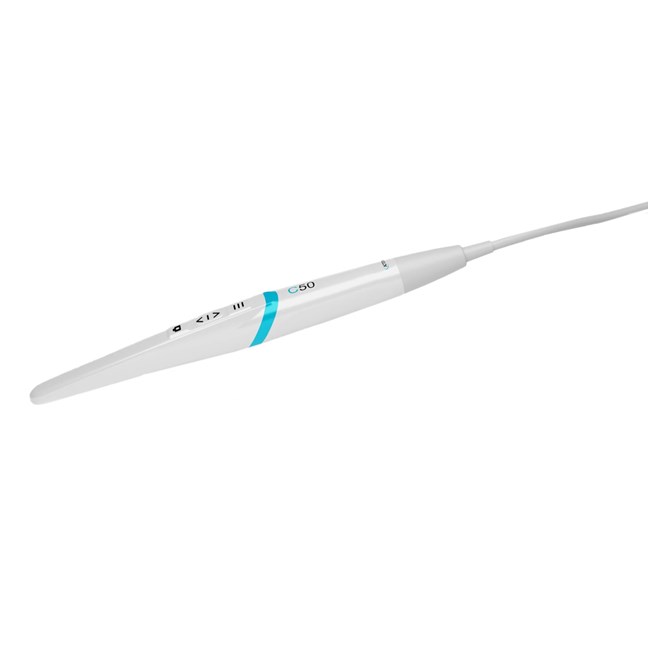

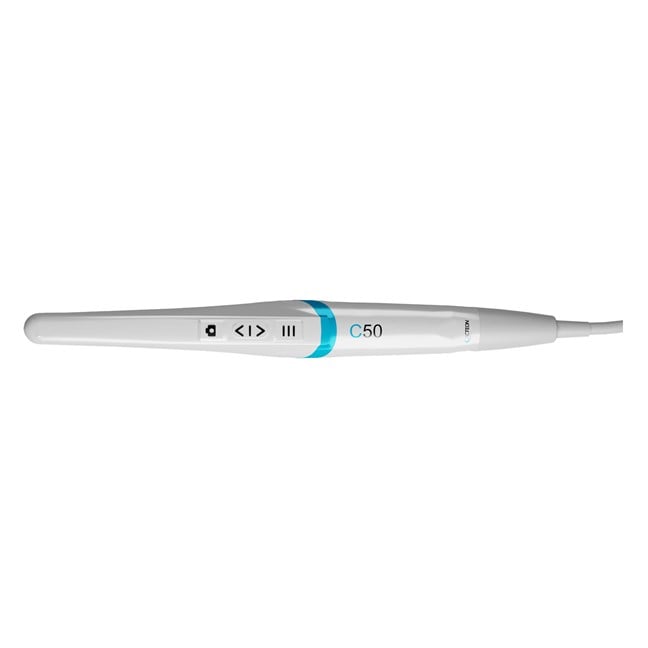

Full HD Camera.
The C50 is the newest addition to the Acteon intraoral camera range and the perfect HD diagnostic tool that complements their clinical workflows. A single camera for all modes: macro, intraoral, smile and portrait, the unprecedented vision improves interpretation of tooth shades with rendering of natural colours and aids in diagnosing and controlling oral pathology.
- Increase treatment acceptance: Patients become more involved in their oral health status, as they quckly understand the importance of the suggested treatment plan.
- Increase trust and patient confidence: Compare images from previous patient visits to monitor progress and explain changes.
- Enhance dental plaque and gingival inflammation thanks to chromatic amplification in perio mode.
- In cario mode, detect caries using the fluorescence technique created by the LEDs.
Contact us today to discuss how you can adopt this fantastic diagnostic and communication tool, to better serve your patients and grow your practice.
Camera Specifications:-
- Sensor: CMOS
- Resolution: 1920 x 1080px
- Sensitivity: 2 lux
- Frame per second (FPS): 25 – 30
- Aspect ratio: 16/9
- Lighting 6 white LEDs and 2 blue LEDS
- Focus adjustment: Automatic focus or Single focus
- 4 Visions mode: DAYLIGHT mode, If option enabled: DAYLIGHT+ mode, , PERIO mode and CARIO mode
- Depth of field:From portrait to macro
- Image capture: Capture button or footswitch (optional)
- Angle of view 75°
- Cable length: 3m
- USB output: 3.0
- Consumption: 4.5W max
- Handpiece dimensions: L: 200; W: 30; H: 24mm
- Handpiece weight: 100g
- International Protection Marking (IP): Dust & waterproofness protection IP53
Computer Configuration Requirements:-
- CPU: Intel Core i5 4 core 2GHz Gen 8 or greater
- RAM: 8GB
- USB version: 3.0 or greater
- USB chipset: Intel or Renesas
- Operating system:
from Windows 10 PRO 64 bits or macOS Catalina
For Acteon C50 Intraoral Camera Sheaths see DD Code 140132
