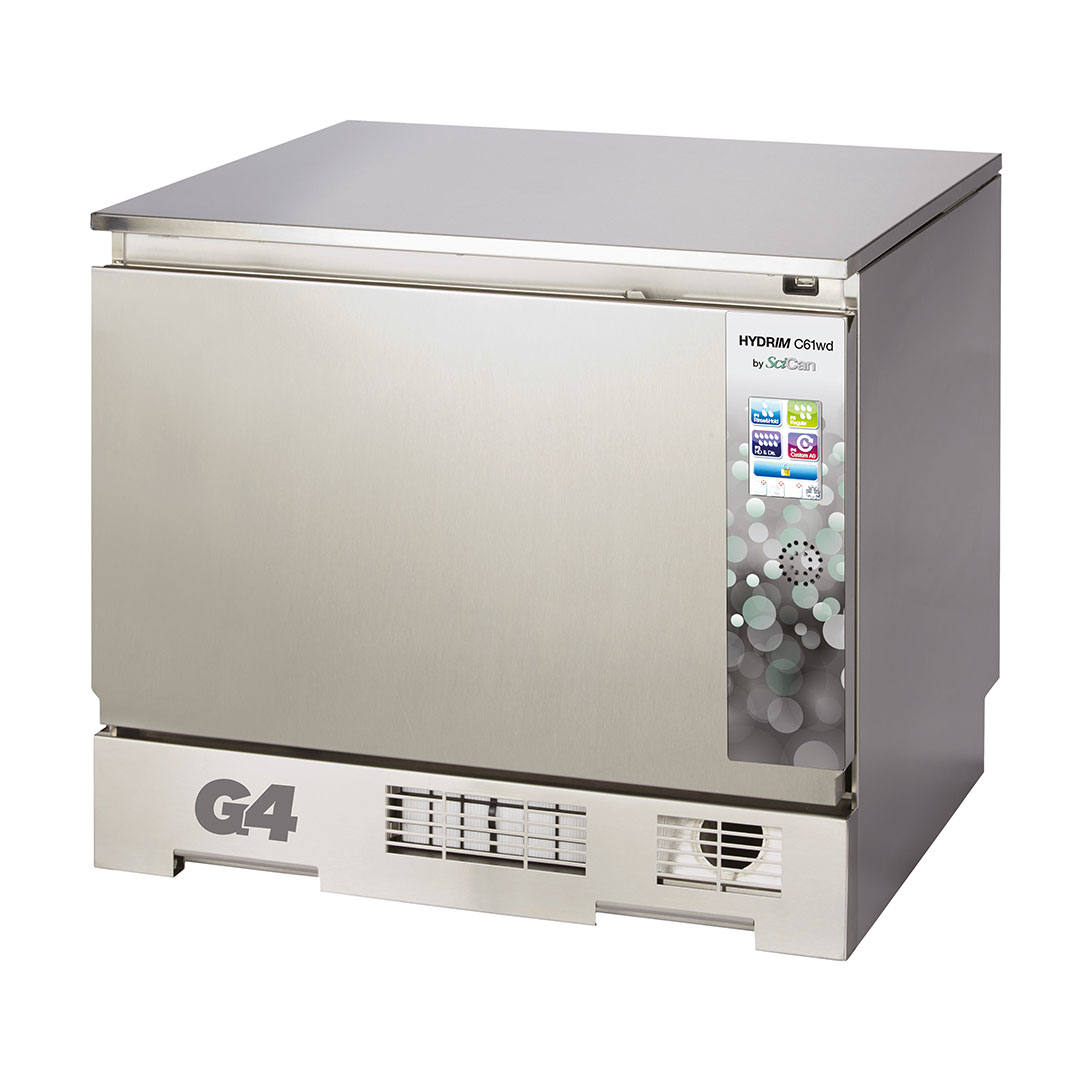

HYDRIM C61WD G4 ensures instruments are properly and consistently cleaned and disinfected before moving to the next step of instrument reprocessing, sterilization.
Efficient:-
HYDRIM C61WD G4 has a 6 full-size cassette capacity and can turnover 120 instruments in 60 minutes, start-to-dry.
- Can be mounted under the counter or as a counter top.
- HIPTM ULTRA cleaning solution is stored in the unit, no extra storage space required.
- Washer-Disinfectors have validated cycles to ensure repeatable performance.
Safe:-
Avoid the many steps involved with manual cleaning or using ultrasonic cleaners such as pre-soaking, scrubbing and drying instruments.
- HYDRIM G4 ensures that every set of instruments receive the same validated cleaning process by dosing the correct amount of detergent with each cycle.
- Active drying system allows instruments to immediately be transferred to the next step of instrument reprocessing, sterilization.
Smart:-
G4 Technology – Information at your fingertips
- Designed as a self-monitoring unit, network enabled G4 technology can connect and send cycle data to your smart devices or computer, providing easily accessible cycle information and service logs.
- G4 technology connects your HYDRIM to specialized technicians, which allows for remote support and minimizes unnecessary downtime.
- Large touch screen gives in-depth cycle info and allows users to view current operation
Package includes:
Benchtop Washer Disinfector with Stainless Steel Door, 1 detergent dosing pump, steam condenser, electrically heated forced air drying with F5 filter grade (EN 779:2012 G3), soft touch HMI with LCD color display, cold water connection, RS232 port for printer connection, USB port. Standard 3 pin 13A plug 230V∿ 50Hz CHAMBER HARDWARE NEEDS SPECIFIED SEPERATELY. SEE OPTIONS ON SCICAN MACHINE OPTIONS. For a typical set up which will split the chamber loading between clip trays and loose instruments see QHS204
Unit Size: (W x H x D) 598 x 520 x 526mm (23.5” x 20.5” x 20.7”)
Cycle Times*
- Rinse and Hold 5 mins
- Regular Wash + Dry† 26 mins + 10 mins
- Heavy Duty Wash + Dry 42 mins + 10 mins
- Weight 44 kg / 97 lbs
- Electrical Rating 208-240V, 12A, 60 Hz
- Disinfection Cycle
Built in accordance to ISO15883-1 & -2
*Actual cycle times will vary with incoming water temperature and pressure.
† Please note that this cycle DOES NOT provide disinfection. This option can only be activated by a technician.
The air filter for this unit can be ordered under DD code QZS054.
