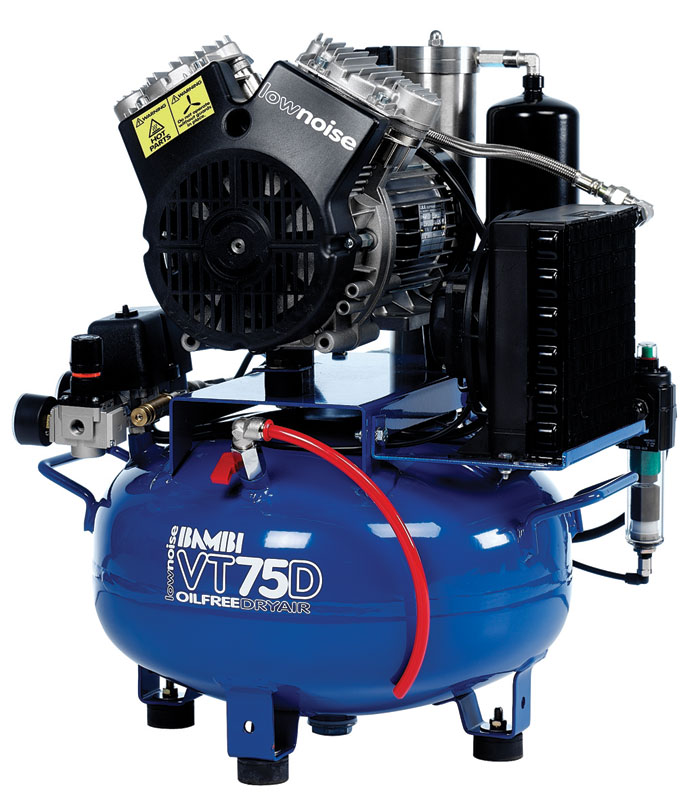

VT75D is the most compact unit of the VT range equipped with a dryer and aftercooler. The oil free compressor is fitted with a 24 litre vertical tank and 0.75 HP / 0.55 kW pump delivering 65 litres of air per minute at 5 bar operating pressure - fitted with a dryer and aftercooler

The VT75D falls below the 250 bar litre threshold defined in the UK Pressure Systems Safety Regulations (PSSR) 2000. As a result, in most installations a formal Written Scheme of Examination is not normally required, helping to reduce inspection costs and administrative overheads.

One surgery compressor

Technical Specifications:-

• FAD (@5 bar): 58 L/Min
• Motor power: 0.75 HP / 0.55 kW
• Tank size: 24 Ltr
• Below PSSR threshold: Yes
• Max pressure: 8 Bar
• Noise level: 74 dB(A)
• Current: 5 Amps
• Supply: 240v or 400v
• Connection: UK plug
• Weight: 40 kg
• Dimensions (H x W x D): 64 x 52 x 49 cm
