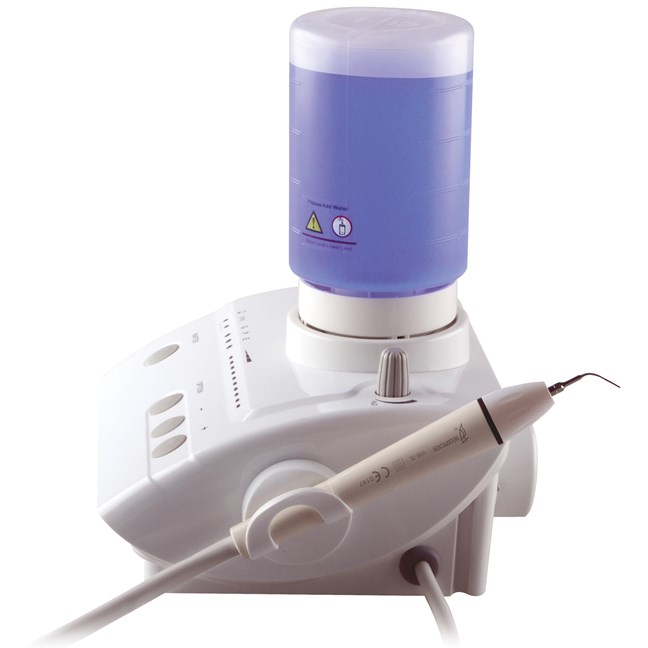

Woodpecker UDS-E LED Scaler Unit

QSE103 (Each) Woodpecker code: WOO/UDS-E/LED

Retail Price £333.78

The UDS-E LED is a four-function (scaling, perio, endo and auto-water supply) ultrasonic piezo scaler with a detachable handpiece incorporating an LED light.

The unit features automatic frequency tracking which ensures that it is always operating on the most efficient frequency for optimum performance. It also features a built-in 350ml capacity water container, however, there is also an adaptor for an external water source and a spare bottle. Complete with 8 tips, torque wrench, tip holder and spare bottle

Features:-

LED Handpiece for better visibility
Auto-water supply function
Clinical fluids, such as hydrogen peroxide, chlorhexidine and sodium hypochlorite, etc., can be used perfectly under the mode of auto-water supply system so that the performance of perio and endo is improved dramatically
PC controlled for easy operation and more efficient scaling
Automatic frequency testing
EMS compatible handpiece
Scaling Frequency: Average 28000 - 29000Hz
Perio Frequency: Average 28000 - 29000Hz
Endo Frequency: Average 27000Hz

Specification:-

Power input 220-240V ~ 50Hz/60Hz
Main unit input 24V ~ 50Hz/60Hz 1.3A
Output power 3W~ 20W
Frequency 28kHz - 3kHz
Water pressure 0.1bar ~ 5bar (0.01MPa ~ 0.5MPa)
Main unit weight 1.35kg • Dims 234mm x 193mm x 109mm

Pack contains:

1 x Main unit
1 x Handpiece
1 x Footswitch
8 x Tips (Scaling tips: G1, G4, G5, G6, P1, P4D, P3, Endo chuck E1)
Tip holder #2
1 x Adapter
1 x Torque wrench
1 x Endo wrench
350ml water bottle
500ml water bottle
LED lamp
instructions for LED lamp replacement
Operation manual
Qualified certification
1 x O-ring pack

Warranty: 12-month warranty (excludes scaler tips)
