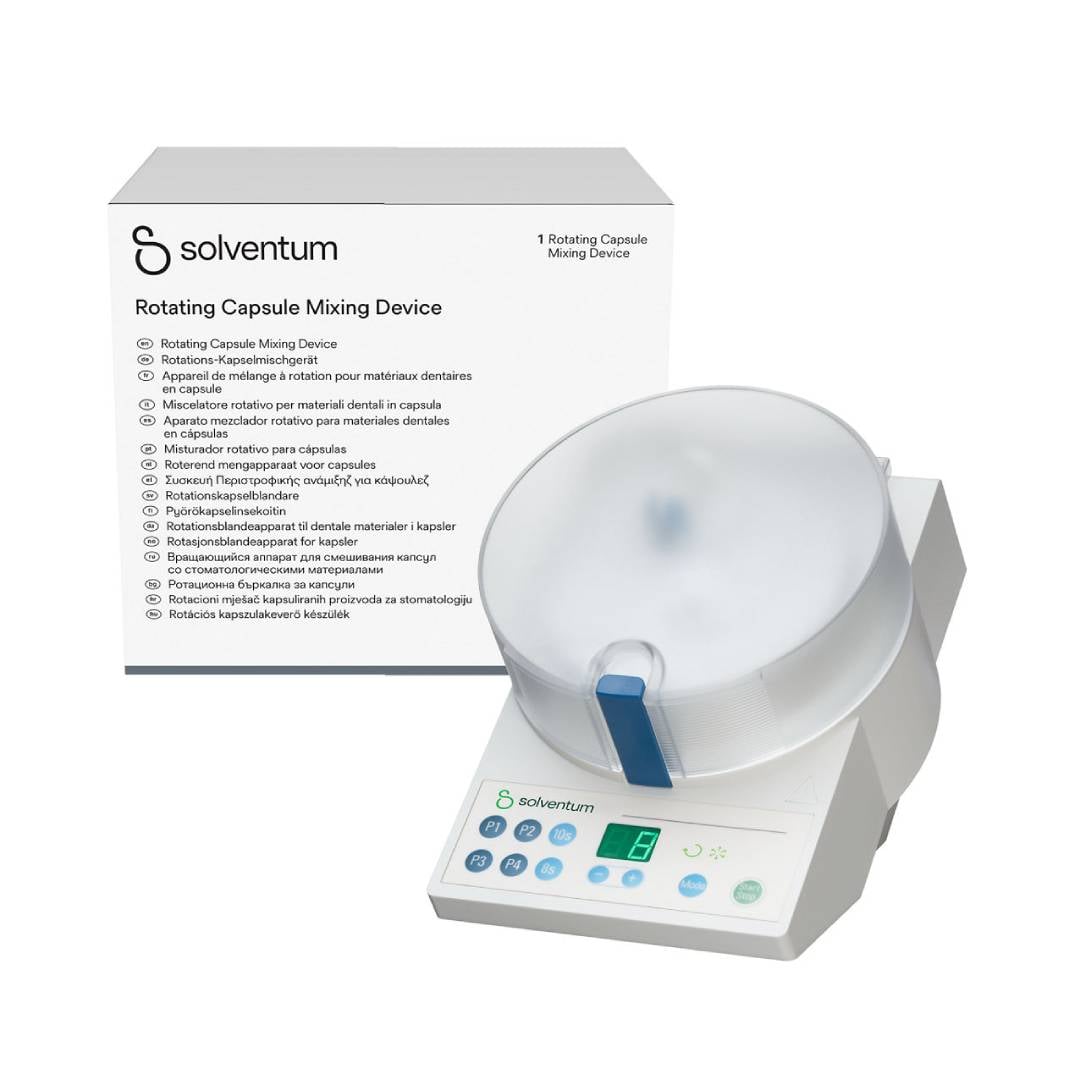

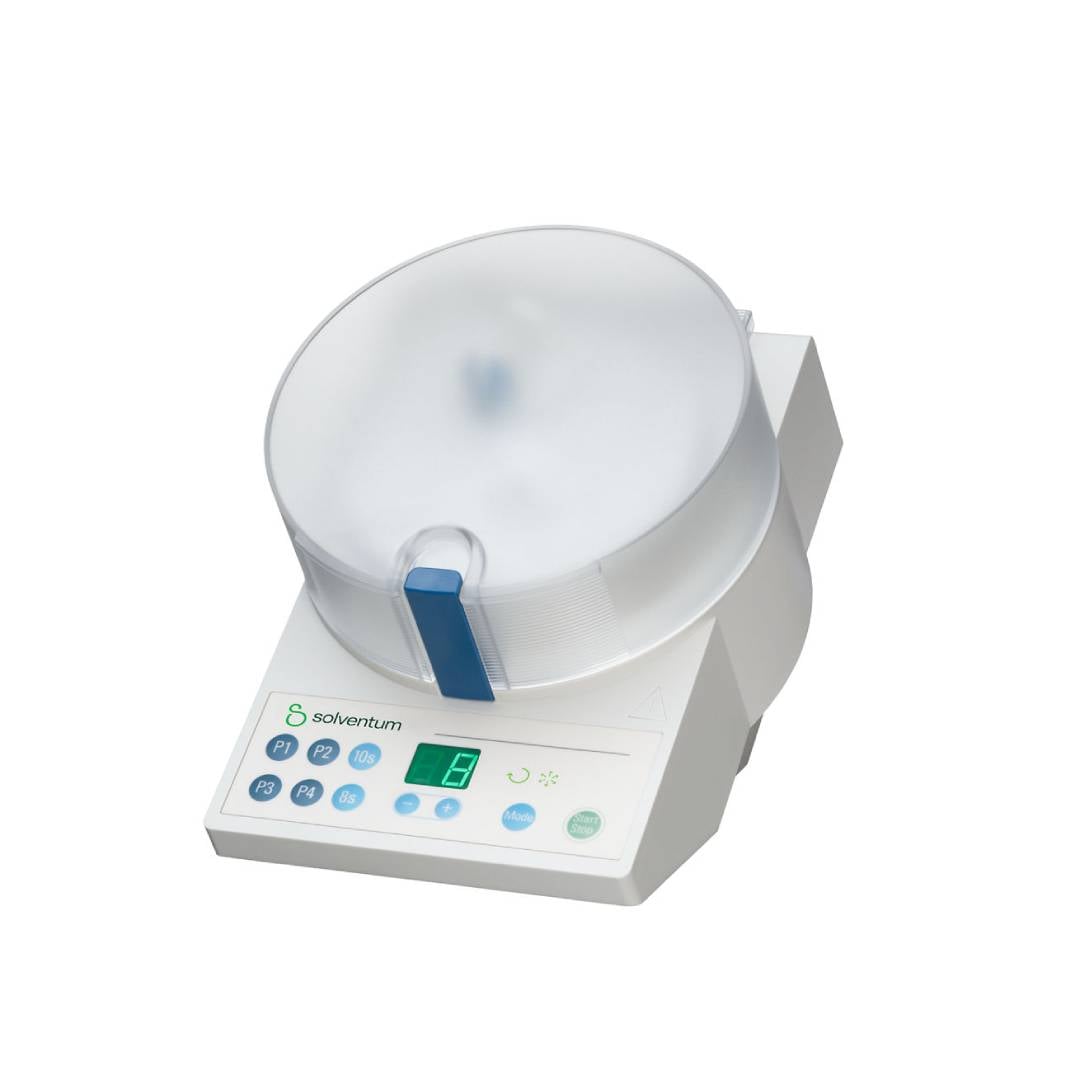

3M RotoMix Capsule Mixing Unit is transitioning to Solventum Rotating Capsule Mixing Device.

A rotational/centrifugal capsule mixing unit that`s easy to use and optimizes physical properties of the materials by delivering a completely homogeneous mix while significantly reducing porosity.

• Easy loading and unloading of capsules
• Touchpad features both pre-programmed and programmable setting options for simple operation
• Typical mixing speed: 2850 rotations per minute
• Typical centrifuging speed: 2950 rotations per minute
• Extremely quiet operation
• Rotating platform with simultaneously counter-rotating capsule holder produces the most complete mix
• Automatic centrifugal cycle produces a denser mix and virtually void-free material.

Technical data:

• Drive unit: Ball-bearing motor with integrated self-resetting overheat cut-off
• Operating mode: Short-term operation, 2 min On/ 5 min Pause (to prevent needless motor heating)
• Controller: Microprocessor-controlled, high precision mixing time control by quartz timing mechanism
• Capsule holder: Self-locking
• Capsules: Diameter max.19 mm, total length max. 58 mm, length without tubes max. 38 mm, weight max. 6 g
• Housing: Housing and protective cover consist of high impact-resistant plastics
• Mixing speed: typically 2850 for 6 g-capsules
• Centrifugation speed: typically 2950 for 6 g-capsules
• Operating temperature: 18°C…40°C/64°F…104°F
• Humidity: max. 80% at 31°C/88°F, max. 50% at 40°C/104°F
• Main voltage: 120 V, 230 V, 50/60 Hz, for voltage setting refer to the rating plate
• Power requirements: 390 VA
• Fuses: 230 V: 2A time-lag fuse / 120 V: 3.2 A time-lag fuse
• Dimensions: (W x H x D) 180 x 210 x 250 mm
• Weight: 4000 g

76301

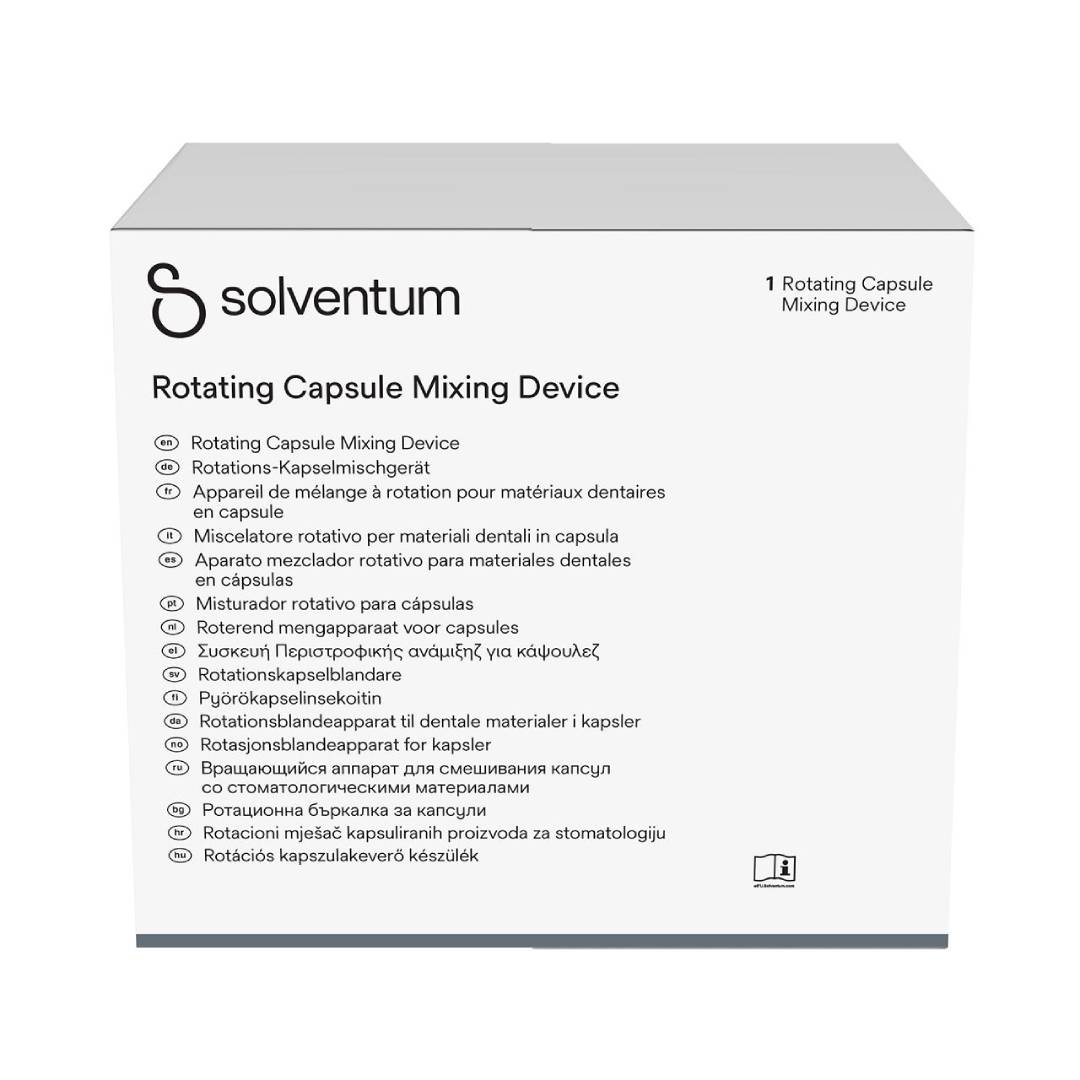

Please note: Product packaging may vary from photo shown due to the current rebranding project from 3M to Solventum. The performance and design of the products will remain unchanged
